Professional Starch Processing Desander Precision Sand Removal Apparatus Cassava Potato Starch Processing Lines

Dettagli:

Luogo di origine: Cina
Marca: ZY
Numero di modello: DS

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1 set
Prezzo: 2000-999999USD
Tempi di consegna: 15 giorni dopo il contatto di vendita del segno
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 20 set al mese
Miglior prezzo Contatto

Informazioni dettagliate
Colore: Bianco argenteo Garanzia: 1 anno
MISURARE: Dimensioni standard Materiale: SS304
Tipo: DS2 Materia prima: manioca, patate, patate dolci
Applicazione: produzione dell'amido Vantaggio: Alto efficiente
Prodotti finali: Amido di manioca super fine Qualità: livello superiore
Industrie applicabili: Fabbrica di cibi e bevande
Evidenziare:

starch processing desander machine

,

precision sand removal apparatus

,

cassava starch processing equipment

Descrizione di prodotto

Professional Starch Processing Desander Precision Sand Removal Apparatus Cassava Potato Starch Processing Lines


1.Work principle:

This desanding apparatus harnesses centrifugal separation technology to reliably eliminate sand particles and extraneous contaminants from raw material slurries. Its operational principle is as follows: an eccentrically installed water inlet pipeline connects to the cylindrical main body. As the water-material mixture enters via the cyclone sand inlet, it undergoes tangential movement and spirals downward along the inner wall of the cylinder. Upon reaching a preset section of the conical segment, the flow direction reverses, and the mixture spirals upward along the cylinder’s central axis, with the purified liquid ultimately discharging through the top outlet pipe.
Throughout this cyclical process, centrifugal force and gravitational pull drive sand grains and high-density impurities to adhere to the conical wall, which then slide downward into the bottom slag collection hopper. The hopper is equipped with anti-backflow components that prevent accumulated contaminants from being re-entrained by the upward water flow. When the impurity level accumulates to the predefined threshold, operators merely need to open the manual discharge valve, and the residual water will flush the deposited debris out smoothly and completely.


2. Description of Desander :


The desanding hydrocyclone is engineered to remove sand and silt contaminants from the slurries of crushed starch, cassava, and potato materials. It boasts extensive applicability across corn starch, cassava starch, cassava flour, wheat starch, sago, and potato starch processing lines.


3 .Features and benefits:


  • Reinforced stainless steel construction delivers superior structural strength and prolonged equipment service life.
  • Precision-machined inlet and outlet ports enable reliable operation outside the main working zone.
  • Continuous discharge system enables non-stop operation, cutting out short-cycle related downtime entirely.
  • Six parallel unit clusters enhance processing capacity, combined with a series-connected unit for two-stage filtration ensuring efficient sand removal and full sediment separation.
  • 304 stainless steel enclosure simplifies cleaning procedures and complies with rigorous sanitation requirements.


4. Type of machine :



Type Capacity Material
DS2 10t/h fresh cassava SS304 or nylon
DS4 15t/h fresh cassava SS304 or nylon
DS4+1 20t/h fresh cassava SS304 or nylon
Customized per output SS304 or nylon



5. the delivery photo :

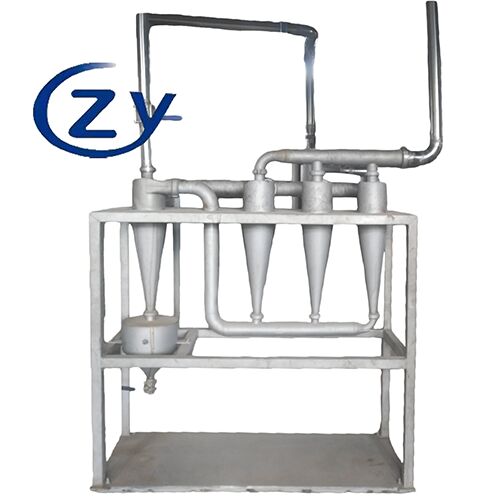

Professional Starch Processing Desander Precision Sand Removal Apparatus Cassava Potato Starch Processing Lines 0
