High-Performance Rasper: Specialized Crushing Machine for Cassava Potato and Root Crop Production Lines
Dettagli:
| Luogo di origine: | Cina |
| Marca: | ZY |
| Certificazione: | ISO |
| Numero di modello: | PR500 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1SET |
|---|---|
| Imballaggi particolari: | imballaggio semplice |
| Tempi di consegna: | 20 giorni dopo aver ricevuto l'acconto |
| Termini di pagamento: | L/C,T/T |
| Capacità di alimentazione: | 2 set al mese |
|
Informazioni dettagliate |
|||
| Funzione del macchinario: | Tagliaradice di manioca | Origine: | Henan, Cina |
|---|---|---|---|
| Marca: | ZY | Cuscinetto meccanico: | Marchio SKF |
| Modello: | PR500 | Capacità: | 22-25 t/h manioca fresca |
| Velocità: | 1450 giri/min | Energia: | 200kw, 220kw, 250kw, 300kw, 315kw |
| materiale: | Acciaio inossidabile 304 | Colore: | Bianco argenteo+verde |
| Garanzia: | 1 anno | Utilizzo: | Design personalizzato in termini di capacità |
| caratteristica: | Mulino per tuberi Premium | Qualità: | Grado superiore |
| Prodotti finali: | Tapioca superfine/fecola di patate | ||
Descrizione di prodotto
High-Performance Rasper: Specialized Crushing Machine for Cassava Potato and Root Crop Production Lines
Main Features of cassava crushing machinery :
Rasping is a key initial stage in starch production, designed to break down tuber cells and fully release internal starch granules. The resulting slurry consists of pulp, juice and starch granules.Equipped with modern high-speed raspers, this process achieves high efficiency in a single pass.Stable feeding speed ensures consistent material flow for all subsequent starch production steps.
Type of Cassava Rasper :
| PR350 | PR500 | PR600 | |
|---|---|---|---|
| Main shaft rotating speed (r/min) | 2100 | 2100 | 2100 |
| Drum diameter (mm) | Φ840 | Φ840 | Φ840 |
| Drum width (mm) | 350 | 500 | 600 |
| Motor power (kw ) | 110 | 160 | 200-250 |
| Capacity | 15-20t/h | 20-25t/h | 30-35t/h |
Advantages of Cassava Rasper :
- Integrates cutting-edge technology and industrial know-how, equipped with original SKF bearings and premium German belts for durable long‑term performance.
- Features a full stainless steel compact structure with viewing window, supporting real-time blade inspection and hassle-free operation.
- High rotational speed delivers fine pulverization and maximum starch yield; reversible rigid blades ensure exceptional efficiency.
- Fast-exchange blades and detachable screen design enable convenient maintenance and rapid component replacement.
FAQ:
1. Are you the manufacture or trading company?
Answer: We are the manufacturer with professional produce experience on starch machine and design more than 13 years. We own both of Domestic and international sales department.
2. Where is your factory located?
Answer: Our factory is located in Zhengzhou city, Henan province, welcome to visit.
3. What is your guarantee of machine ?
Answer: usually our guarantee is 1 years.

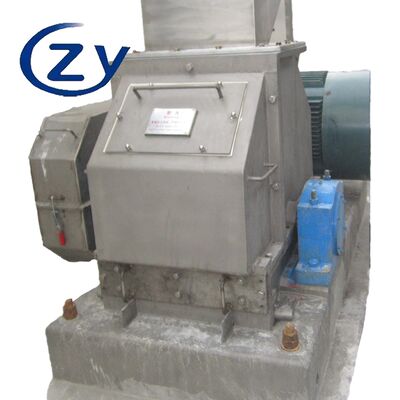

The Photo of Rasper :
Vuoi conoscere maggiori dettagli su questo prodotto
